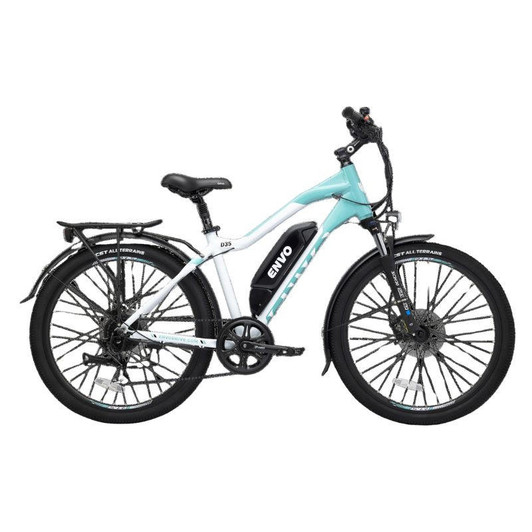

ENVO D35 Electric Bike - Ice Teal
The ENVO 2020 is a new addition and professionally engineered in Canada for the North American market by ENVO DRIVE SYSTEMS
Light weight, only 22KG (48.5lbs) total weight, 25% lighter than similar products. Unisex, 8 speed, hydraulic disk brake, front suspension. 620W Max Power Motor with Max Torque of 60Nm. Complete with rack, fenders, headlight, tail light, kickstand, adjustable handle bar stem, suspension seat - there is nothing to worry about. It can go a max speed of 32km/h (in compliance with regulations) with a range per single charge of 50-100km. Great for commuters, or people looking for higher performance and long range either on paved road or trails with up-hills capability of 10-12% grade.
ENVO D35 500W electric bicycle is powered by a maintenance-free sealed geared hub motor which offers 500W power (Max 620W) and 60Nm peak torque. This is the street legal limit in Canada and most part of US. Geared hub motor technology is 60% lighter yet delivers 50% more torque, 25% more efficient on battery than equal power direct drive hub motors. This motor is developed by ENVO for 20,000Km maintenance-free e-ride
Pedal Assist or Full Electric
This electric bike is equipped with pedal assist sensor which has an optimized torque emulation software. The e-assist system eliminates the road grade by selecting the assist level from 0 to 5 through the keypad on handle bar. There is also a power on demand throttle which lets you ride on electric motor only without pedaling.
The color LCD interface gives access to all monitoring and setting features such as ODO, speed, battery charge level, as well as diagnostics in case of a failure through which you can fix issues yourself using the manuals or with the help of our technical customer service.
Battery and Range
The stylish, removable, lockable high performance and super light weighted LG A-grade Li-Ion battery pack gives an average 50km round trip range on level 4-5 of assist or more than 100km on level 1. External and non-proprietary battery pack makes it well maintenance-able and hassle-free when replacement time arrives years down the road. You can get the spare battery 1/2 the cost of 480-Wh equivalent batteries offered by other famous brands. Battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger.
Strong Aluminum Unisex Frame Design
Solid, super light weighted and stylish uni-sex hydro-formed aluminum frame in small, medium and large size suitable for 5' to 6'6? riders up to 300lbs offers an ergonomic shape, easy to get on/off. This frame has been engineered to minimize the vibration and noise from the drive system; a right wheel-base for a high speed electric bike in both paved roads and trails.
Large and Comfortable Wheel
27.5? x 1.95 wheel tire is giving the best proven outer diameter for a commuter bike (i.e. 700C) but more cushion which improves the ride comfort, dynamic maneuverability and handling in different terrains. Tires are fat and knobby enough for best of grip on wet cement or asphalt paved or dirt and gravel trails; yet creates minimum noise and drag for normal urban paved rides.
Hydraulic Actuated Breaks & Disks
Top of the line Tektro hydraulic disk brakes is equipped with electric cut-off sensors for more safety. Ultimate braking performance utilizing 180mm diameter disk rotor for both rear and front.
Comfortable Suspension Seat
Comfortable saddle with options for ladies and men. Suspension seat post is adding to the ride quality, comfort and minimizes the shocks to spine without affecting pedaling performance.
Adjustable Handle Bar
Adjustable handle bar stem let the rider do the ergonomic fine tuning whether you like an absolute upright or performance pedaling position.
Adjustable, lockable SR Suntour fork with solid 30mm fork legs adds to high speed stability and handling in trails and asphalt. It reduces the shocks to frame and battery system and provides the ultimate comfort.
Bright LED Lights
High efficiency and bright LED 40 LUX head light powered with main battery and controlled by handlebar keypad. Tail-light and reflector provides more safety riding in dark; it powers up once the head-light is switched on.
Stylish PVC black mate fenders provide full coverage and eliminates resonance and vibration noise.
ENVO Sine-wave motor controller has an optimized firmware. Smooth and responsive torque emulating pedal assist activation you cannot find in any other ebike. Excessive motor noise elimination. motor soft start not to panic by accidental throttle hit. Self diagnostics check. Modular, external and easy replaceable for DIY repair. Rainproof design.
Rear cargo rack, solid side kick stand, fenders, bell, etc makes it an all-in deal.
Performance Transmission System
Well engineered 8 speed 48T chain-ring and 11-32 cassette Shimano Altus transmission helps you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h speed on gear 8 with a gentle pedaling.
Frame: 27.5 X1.95, Hydro-formed Alloy 6061 TIG welded,
Fork: SR Suntour, 27.5 X1.95 Suspension fork, with load adjustment and lock, Travel 80mm
Head sets: thread less headsets, f25.4×44×30mm,22mm,NECO
Handlebar: alloy handlebar, 31.8mm TP22.2x680mm, 45mm,15 degree, alloy thread-less stem,
Brake Set: F/R alloy hydraulic disc brakes, black ,with alloy electric brake lever , Rotor 180,Tektro, HD-E350
Grip: TPR Grip VELO
Crank Set: 3/32?x48Tx170MMx9/16?, alloy crank with single chain ring cover, PROWHEEL PRO-748P
BB sets: sealed B.B sets, B908
Pedal: Alloy, 9/16? WELLGO
F/R Hub: F: alloy hub with quick release, hub motor
Gear Set: SHIMANO ALTUS 8 speeds,
Rim: 27.5?x13Gx36H,alloy double wall,black
Spokes Stainless steel black 13G spokes
Tire: 27.5?x1.95, black,with AV butyle tube,KENDA.K1162
Saddle: vinyl top cover, padded with PU, with black ABS ,VELO
Seat Post: alloy suspension seat post
Kickstand: alloy, single rear kickstand
Front Light: battery light, AXENDO 60
Rear Light: battery light RL13
Rear Carrier: alloy carrier,black
Fender: PVC Plastic fender
Motor : Brushless 36V/620W max/ Geared rear motor
Battery: 36V/12.8AH 3200 LG Lithium battery, with with charger
Controller: BLDC Sine-wave controller 17A waterproof connectors.
Sensor: PAS/thumb throttle, speed sensor,
Display: LCD panel, with 6 assistance levels, power display,750C
Packing: 85% assembly,
Parts Warranty: 2 Year on electrical system, 3 months on Tire /Tube and Accessories.
Labour Warranty: 1 Year Limited Warranty
Warranty and Service Offered by: Smart Wheel Canada 1.888.407.4997 Option 3
Warranty Limitations / Exclusion:
Damage to the product from misuse and/or neglect, accidental damage, water/liquid damage, salt damage or from not adhering to the instructions in the Owner's Manual. Damage caused by exceeding maximum weight, attempting tricks or running into obstacles like curbs or walls, water or liquid damage or submerges into the water. Improper or invalid documentation, including but not limited to lack of a warranty sheet, original invoice or discrepancies on the invoice
