Dualtron Raptor 2 - Dual Wheel Drive Electric Scooter
The Dualtron Raptor 2 e-scooter has arrived! The Raptor 2 is a high performance scooter truly worthy of carrying the Dualtron name while still offering a relatively maintenance free and lightweight package. Never worry about flat tires or bent rotors again with this solid tire and drum brake electric scooter. The Raptor 2 is a huge upgrade to the original Raptor and now offers stem lighting, the ey3 throttle, and ABS brakes standard. Coming in at 50lbs (23 Kgs), boasting a 60 volt 18.2Ah pack, the Raptor 2 will get you up to 37 miles (60 kms)of range.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Specification
.jpg)
SPECIFICATIONS
Motor: MAX 3,000 watt BLDC dual hub motor, Nominal 800W x 2
Battery: 60 volt - 18.2 Ah - 1,092Wh - SINC Power cells (Lithium Ion)
Charge time: ~9 hrs with standard 1.75A charger, ~4.5 hours with 2 standard 1.75A chargers, ~2.8 hours with the quick 6.5A charger
Max mileage: ~37 miles (60 Kms) *mileage may vary depending on rider weight and road conditions
Max Speed: ~37 mph (60 Km/h) *limited in the USA / Canada to 15 mph (24Km/h) via speed limiting wire to comply with DOT regulations and insurance requirements. Tampering with the speed limiting wire is discouraged and may be unlawful.
Climbing Grade: 47% or 25 degrees depending on rider weight and state of charge

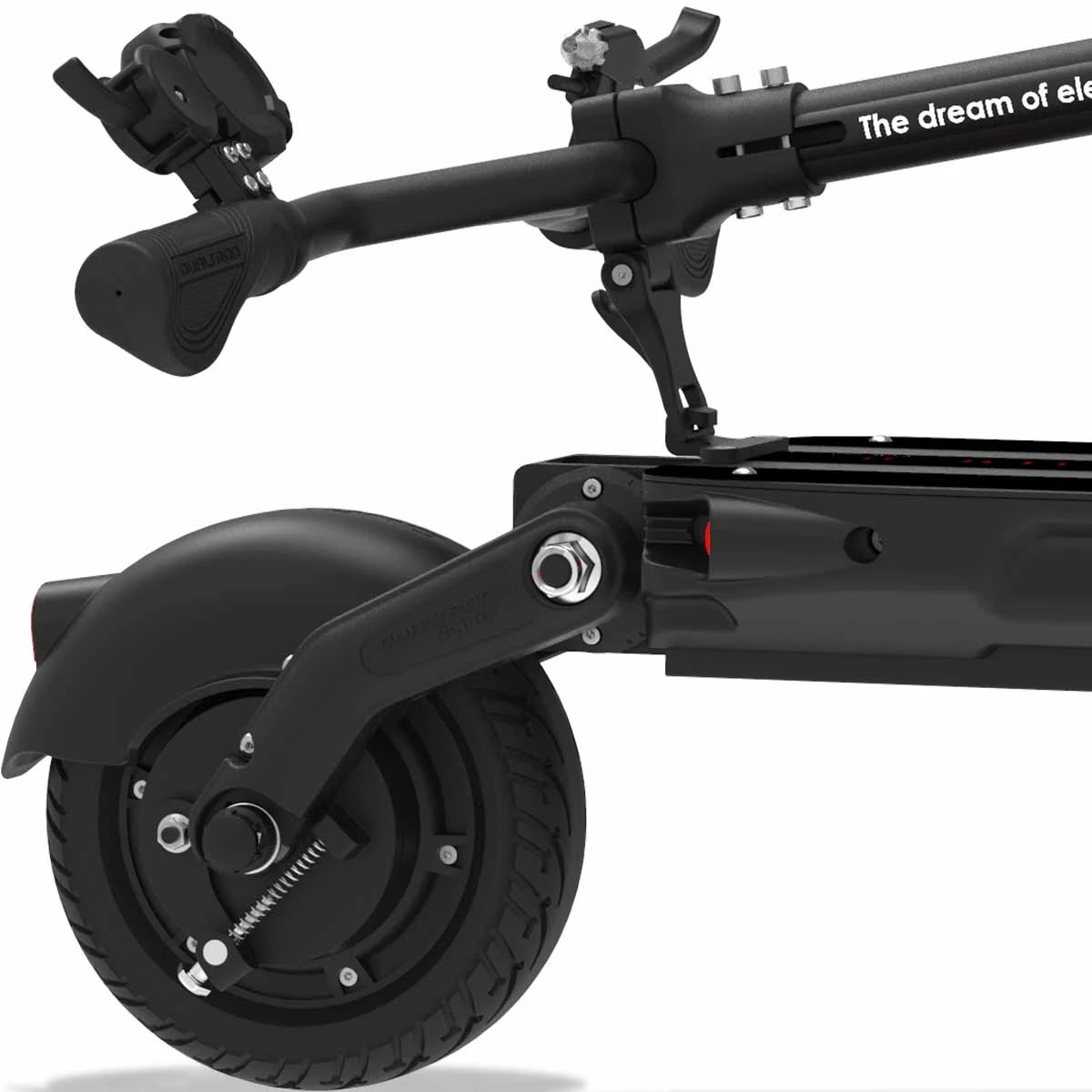

Braking System: Front Electric Regenerative + Rear Drum Brake with ABS Standard

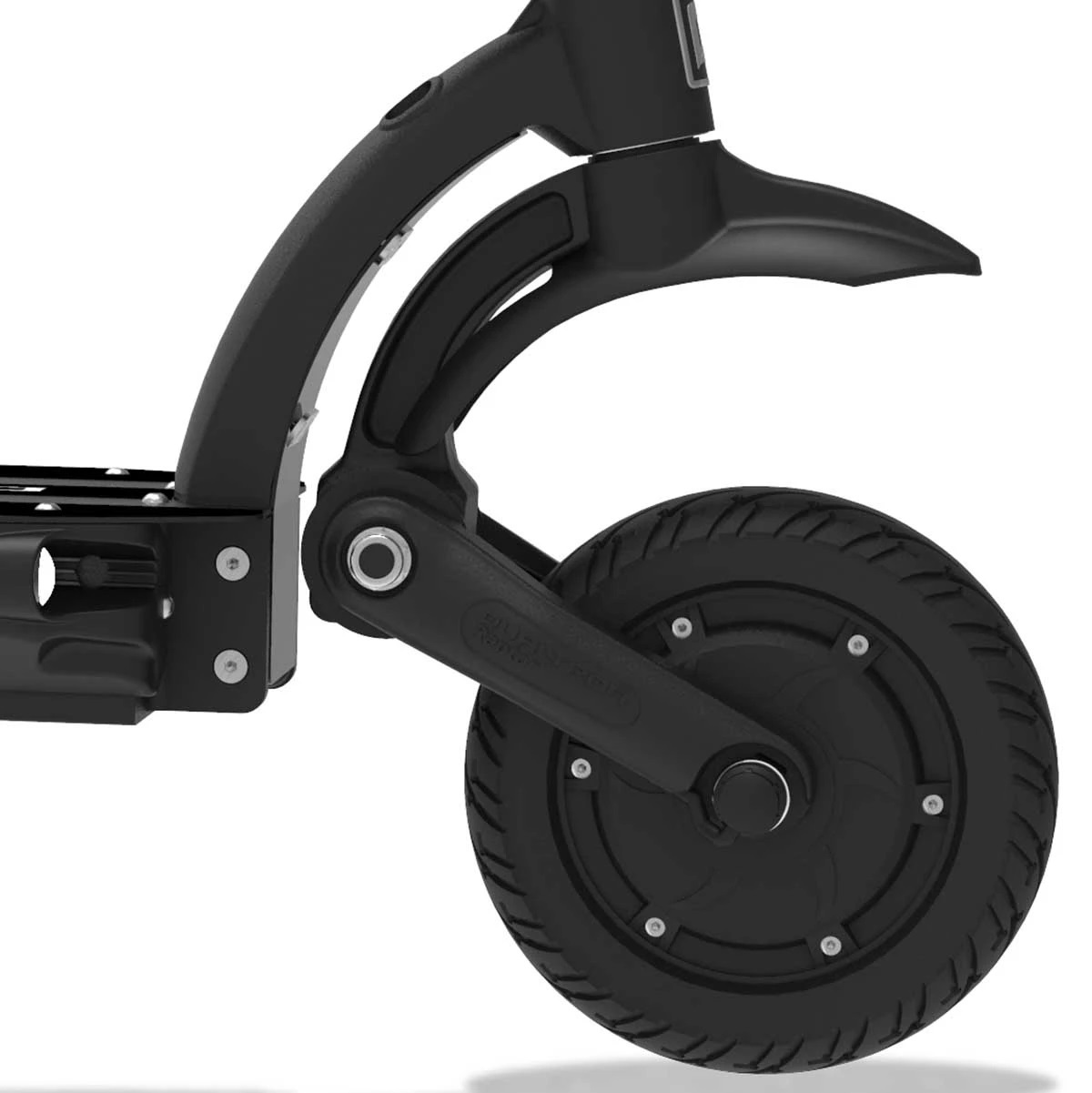

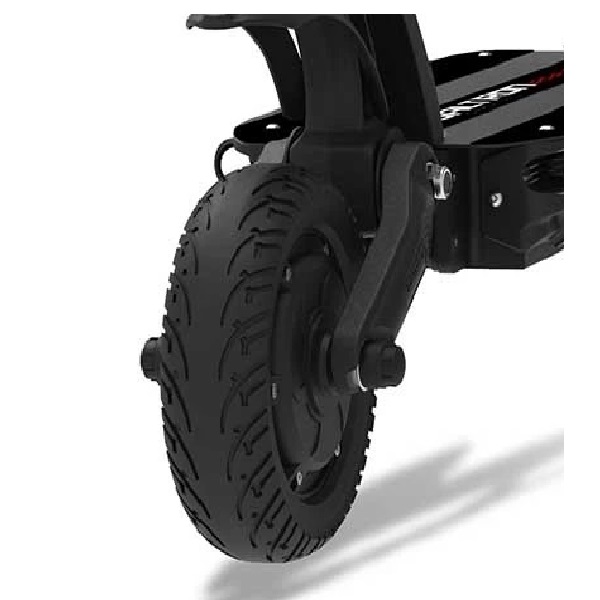

Tires: 8" Solid Rubber tire
Max Load: 220 lbs (100 kgs)
Scooter Weight: ~50 lbs (23 kgs)

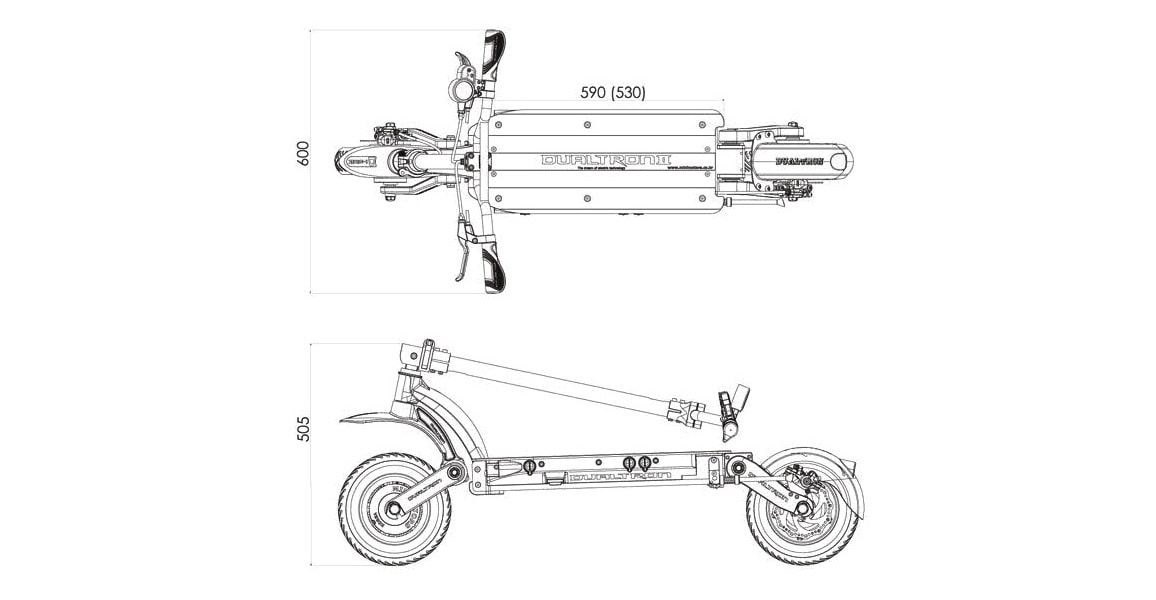

Unfolding size: 1040 x 605 x 1180mm Length x Width x Height
Folding size: 1040 x 243 x 460mm Length x Width x Height
Instrument Panel: EY3 Throttle (Bettery level, TRIP, ODO, drive Time, Speed display and mode change.)
Cruise / Electric brake / Auto save function (3minutes)
Suspension: 15-step adjustable new rubber suspension, 3 step variable suspension system, + 5 kinds of rubber cartridge replaceable design. Rubber cartridge normal is applied basically (Soft, Medium soft, Hard, Medium hard cartridge is optional/Patent pending)
LED Lighting: The built-in Front, Rear and Brake LED lights helps increase visibility and reduces the risk of accidents while riding at night.
Product Material: Magnesium Motors, Carbon Handlebars, Frame is aviation grade 6082-T6 aluminum alloy, the shaft is SCM440 steel, and plastic covers
Download
Operations Manual Dualtron 3 III
Warranty Information
Parts: 1 Year Limited Warranty | Labour: 1 Year Limited Warranty | Warranty is only against manufacturing defects related to functionality of the product | Warranty Limitations / Exclusion: Damage to the product from misuse and/or neglect, accidental damage, water/liquid damage, salt damage or from not adhering to the instructions in the Owner's Manual. Damage caused by exceeding maximum weight, attempting tricks or running into obstacles like curbs or walls, cut outs, riding over safe/recommended speed, using after market chargers or using fast chargers over the maximum limit, water or liquid damage or submerges into the water. Improper or invalid documentation, including but not limited to lack of a warranty sheet, original invoice or discrepancies on the invoice.
