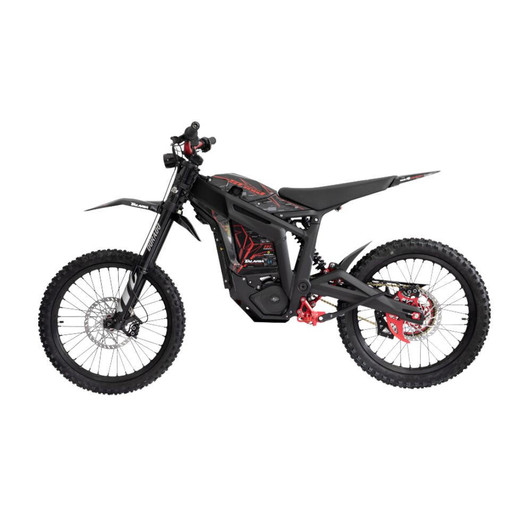

Talaria Sting R MX4 Expert Electric Dirt Bike (Manitou Dorado Fork) - Black

(No reviews yet) Write a Review
SKU:
1TL-STINGMX4-EXP-BLK
TOP SPEED*:
~85 km/h (52.8 mph)
MAX RANGE*:
~120 kms (75 mi)
WEIGHT:
66 kg (145 lbs)
MOTOR:
4000W
BATTERY:
2700Wh
MAX LOAD:
100 kgs (220 lbs)
MAX GRADE:
-
TIRE SIZE:
19 in
Flat Rate Shipping

Options

C$7,399.00

Info

SKU:1TL-STINGMX4-EXP-BLK

Info

SKU:
1TL-STINGMX4-EXP-BLK
TOP SPEED*:
~85 km/h (52.8 mph)
MAX RANGE*:
~120 kms (75 mi)
WEIGHT:
66 kg (145 lbs)
MOTOR:
4000W
BATTERY:
2700Wh
MAX LOAD:
100 kgs (220 lbs)
MAX GRADE:
-
TIRE SIZE:
19 in

Warranty

Parts: 1 Year Limited Warranty | Labour: 1 Year Limited Warranty | Warranty is o…

Warranty

Parts: 1 Year Limited Warranty | Labour: 1 Year Limited Warranty | Warranty is only against manufacturing defects related to functionality of the product | Warranty Limitations / Exclusion: Damage to the product from misuse and/or neglect, accidental damage, water/liquid damage, salt damage or from not adhering to the instructions in the Owner's Manual. Damage caused by exceeding maximum weight, attempting tricks or running into obstacles like curbs or walls, cut outs, riding over safe/recommended speed, using after market chargers or using fast chargers over the maximum limit, water or liquid damage or submerges into the water. Improper or invalid documentation, including but not limited to lack of a warranty sheet, original invoice or discrepancies on the invoice.

Frequently Bought Together:

 Talaria Sting R MX4 Expert Electric Dirt Bike (Manitou Dorado Fork) - Black
Inc. Tax
Ex. Tax

Description

Talaria MX4 Expert Edition: Unleash the Thrill of Off-Road Adventures

Talaria has revolutionized the world of electric performance bikes with the creation of the Sting, designed to deliver cutting-edge experiences to all riders. The MX4 Expert Edition takes this innovation to new heights, combining a meticulously CAD-designed lightweight frame with a powerful electric motor and an advanced 45Ah battery. Experience the exhilaration of instant torque through the Sting’s intelligent gearbox and whisper-quiet drivetrain. The compact and well-balanced chassis ensures effortless maneuverability, while its robust build demands minimal maintenance, making the Talaria Sting the perfect companion for off-road escapades.

Talaria MX4 Expert Electric Dirt Bike

WHAT'S NEW IN STING MX4 EXPERT?

10% Peak Power Increase: Experience more power with a significant boost over the previous MX4 version.
Manitou Dorado Expert Adjustable Front Fork: Superior suspension for a smooth and controlled ride.
Magura MT-5 Brake System with 220mm Disc: Unmatched braking power and precision.
CNC Red Rear Brake Disc Guard, Hubs, Pegs, Mount, Axle Block, Linkage & Sprocket: High-quality, durable components designed for performance and aesthetics.
Improved Chain Guard: Enhanced protection and longevity for your bike’s drivetrain.
Black Wheel Spokes: Sleek and stylish design for an aggressive look.
High Contrast OLED Large Display: Easily monitor your bike’s performance with a state-of-the-art display.
Improved 45Ah Battery: Enjoy best-in-class range and battery life, perfect for long adventures.
Internal Gearbox: Delivers quiet, reliable power without the hassle of breaking or wearing out belts.
Regenerative Braking: Adjustable via the display screen for optimized performance and efficiency.
Fast Charging Time (3 Hours): Minimal downtime with quick and efficient charging.
Improved DC IPM Motor: Achieves 94% efficiency for exceptional performance and reliability.

BATTERY

The Sting MX4 is powered by a strong 60V/45Ah lithium-ion power pack (2,700 watt-hours). Easily swappable, the battery pack can be removed and replaced with another fully charged power pack in seconds for limitless range. With electric auto-grade LG 21700 lithium-ion battery cells, state of the art programmed battery management system (BMS) and optimized internal structure, this battery pack ensures the bike brings you safe, hi performance off-road riding.

CONTROLLER

With the high-quality hardware, superb layout and intelligent programming, the Sting MX4 controller has an extraordinary level of transient current impact resistance, ultra strong anti-interference, high-precision EABS voltage and discharge current control, error inspection, high and low temperature protection, anti-runaway, and smart energy regeneration. This guarantees a powerful, exciting, and safe riding experience with respectable range.

DISPLAY

The display screen features a high-contrast OLED display that offers riders a clear info display with low power consumption. With CAN communication, the dash can transfer data with the BMS and controller. The display menu provides a range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and more. The dash is also adjustable if using different wheels, sprocket size, regen levels, and can display in km or miles.

POWERTRAIN

The customized combination powertrain design is just perfect for the light weight electric MX bike. The high efficiency brushless permanent magnet synchronous mid-drive motor, with top-class magnet material and advanced processing, is available to output 45N.m peak torque. With exquisitely crafted high accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive systems. It’s time to say goodbye to that broken belt anxiety.

The Talaria Sting MX4 Expert Edition is not just a bike; it’s a gateway to the passion and thrill of off-road adventures. Experience the future of electric biking with unparalleled power, performance, and precision.



Specifications

Chassis Material: 6061 T4 & T6 aluminium alloy
Process Method: Forged under 6,000 tonnes of pressure
Surface Method: Anodizing
Headlight: LED
Front Fork: Manitou Dorado Expert
Rear Shock: Fastace/Talaria Factory/DNM
Wheel Size: 19 in. front/rear
Tires: FR 70/100-19 / RR 80/100-19 off-road tires
Max Range: 120 km @ 25 km/h (78 miles @ 15 mph)
Net Weight: 66 kg (145 lbs) with battery
Vehicle Dimensions: 1,880 x 770 x 1,088mm (74 x 30.3 x 42.8 in)
Seat Height: 840mm (33.1 in)
Wheelbase: 1,250mm (49.2 in)
Handlebar Length: 760mm (29.9 in)
Ground Clearance: 300mm (11.8 in)
Motor Type: Air-cooled DC IPM
Mounting Position: Mid-mounted
Weight: 7.0 kg
Motor Ext. Diameter: 180mm
Peak Efficiency: 94%
Controller Type: FOC
Weight: 2 kg (5 lbs)
Dimension: 248mm x 128mm x 50mm
Peak Efficiency: 92%
Highest Work Temp: 100°C
Nominal Voltage: 60V (DC)
Maximum Speed: Factory limited to 32 km/h (20 mph)
Nominal Torque: 50 N.M
Gear Ratio: 8.35 (44T) / 9.18 (48T)
Primary Transmission: Gearbox
Drive Transmission: Chain
Battery Pack: 60V 45AH
Battery Size: 170mm x 140mm x 380mm
Battery Weight: 12.85 kg (28.3 lbs)
Battery Cells: LG Brand 21700 cell (5000 MAH/cell)
Display: Speed, battery level, voltage, odometer
Regenerative Braking: 4-level adjustment
